| Describe：

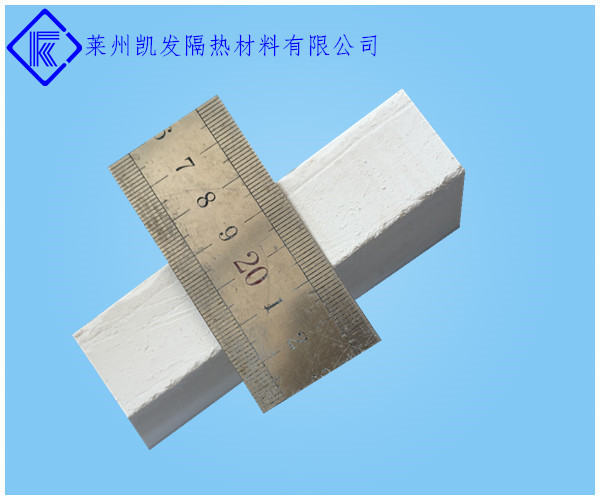

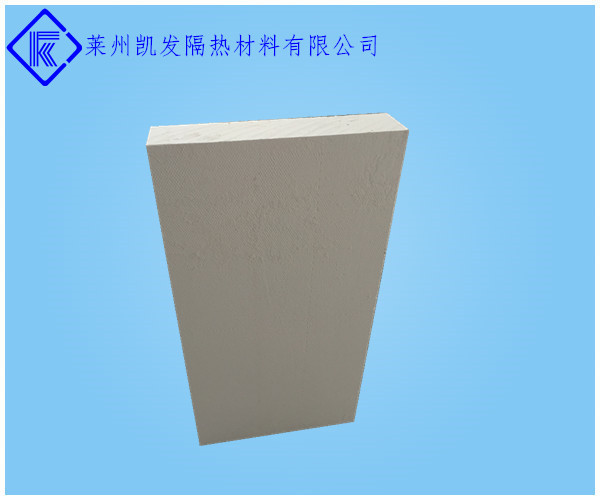

Kaifa Calcium Silicate Board
Calcium silicate is mainly made by silicon dioxide and calcium oxide powder with wood fiber as reinforcing material.
It is a new environment-friendly insulation material, non-toxic and no poisonous substance such as asbestos, sulfur and chlorine.
There're 2 types, ordinary microporous calcium silicate of 650°C resistant and high end refractory calcium silicate of 1050°C resistant.
Low Thermal Conductivity
Light Bulk Weight
High Compressive Strength
Easy Cutting
Non-Toxic
Water Proof
Long Service Life
Physical Performance
Items
Unit
KF-170
KF-220
KF-270
Bulk Density
Kg/m3
170(±10%)
220(±10%)
270(±10%)
Pressure Strength
MPa
≥0.40
≥0.50
≥0.60
Flexural Strength
MPa
≥0.30
≥0.35
≥0.40
Thermal Conductivity
W/m.k
≤0.048
≤0.050
≤0.056
Temp. Limit
℃
1000
1050
1050
Linear Shrinkage
%
≤1.50 (1000C,3hrs)
≤1.50 (1000C,3hrs)
≤1.50 (1000C,3hrs)
|
